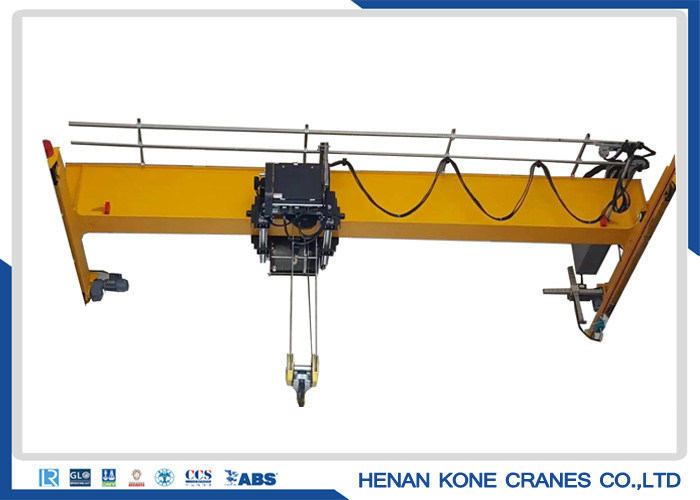

Large Capacity Mini KBK 500kg Electric Overhead Crane

Large Capacity Mini KBK 500kg Electric Overhead Crane

    • Large Capacity Mini KBK 500kg Electric Overhead Crane
  • Large Capacity Mini KBK 500kg Electric Overhead Crane

    Product Details:

    Place of Origin: CHINA
    Brand Name: KN
    Certification: BV CE ISO
    Model Number: LDE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: 30work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description
    Lifting/traveling Speed:: Single/double Speed Ambient Temperature:: -25~40 Celsius,on Request
    Working Voltage:: 3 Phase 380V 50Hz, Or On Request Material:: Q235/Q345 Steel Plate,onrequest
    Main Electrical Parts:: Schneider Brand, Or On Request Power Supply Mode:: Slide Wire Or Soft Cable
    Max. Lifting Height:: 30m Name: Electric Overhead Crane
    High Light:

    500kg Electric Overhead Crane

    ,

    KBK Electric Overhead Crane

    ,

    500kg travelling bridge crane

    Double And Single Beam Overhead Crane/ Mini Kbk Crane 500Kg / Kbk Model European Style Soft Bridge Crane



    Points to attention:

    1. Users should lock the crane in time, when the crane stops operating on operating spot.

    2. There is no electric wire above the total switch of the crane. Strictly forbid to use in such dangerous operating as easily combustible, explosive, corrosive, overloading, dust, etc.



    Single girder, welded box beams, the camber line is according to national standard.

    High safety, high steel degree.

    Adopts high quality carbon steel, Q235B or Q345B.

    The main weld is by submerged arc welding automatic welding, nondestructive flaw detection.

    The end truck adopts 10.9 high strength bolt connection.

    The crane traveling mechanism adopts separated driving, and it can use trinity drive too, safe and reliable.

    End beam equipped with buffer block, orbital cleaning device.



    Single Beam Overhead Crane Description

    5 ton single beam overhead crane with best price is widely used in plants,warehouses,material stocks to lift godds. It is prohibited to use the equipment in the combustiblle,explosive or corrosives enviroment.

    The capacity:1-30ton

    The span : 7.5-31.5m

    The working grade : A3-A5

    The working temperature:-25℃ to 40℃



    Technical parameters of single girder overhead crane:

    Mechanism   Item Unit Result
    Item
    Lifting capacity ton 1-30ton
    Working grade   A3-A5
    Span m 7.5-31.5m
    Working environment temperture °C -25~40
    Travelling mechanism working speed m/min 20-75
    motor type   ZDY1 21-4 ZDR 100-4
    power kw 2*0.8 2*1.5
    rotational speed m/min 1380
    Lifting mechanism lifting speed m/min 8/0.8(7/0.7) 3.5(3.5/0.35) 8(7)
    lifting height H(m) 6 9 12 18 24 30
    travelling speed m/min 20 30
    working system A3-A5
    power source

    three-phase 380V 50HZ



    Large Capacity Mini KBK 500kg Electric Overhead Crane 0
