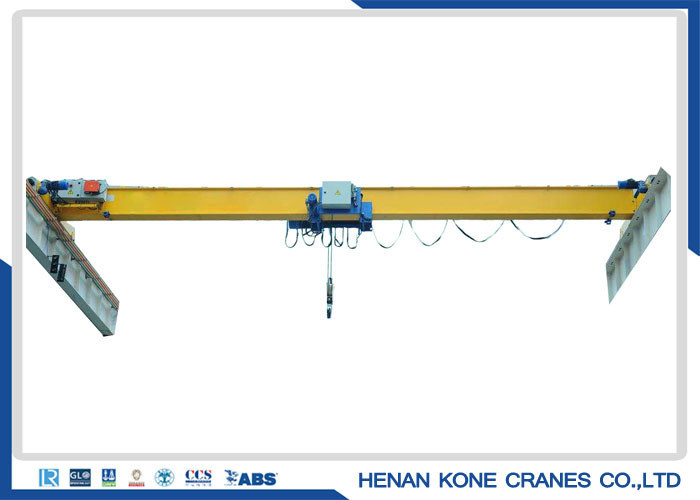

Workshop 5 Ton 12m Explosion Proof Single Beam Eot Crane

Workshop 5 Ton 12m Explosion Proof Single Beam Eot Crane

    • Workshop 5 Ton 12m Explosion Proof Single Beam Eot Crane
  • Workshop 5 Ton 12m Explosion Proof Single Beam Eot Crane

    Product Details:

    Place of Origin: CHINA
    Brand Name: KN
    Certification: BV CE ISO
    Model Number: LX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: 30work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description
    Rated Lifting Moment:: Max. Lifting Load:20t Place Of Origin:: Henan, China
    Warranty:: 2 Years After-sales Service Provided:: Field Installation, Commissioning And Training
    Product Name:: Customized 5 Ton Single Girder Bridge EOT Crane With Motor Working System:: M5
    Lifting Speed:: 5/0.8m/min(or As Your Demand) Max. Lifting Load:: 30 Ton, 20 Ton, 10 Ton, 5 Ton, 3 Ton, 1 Ton, Customizable
    High Light:

    12m single beam eot crane


    5 Ton single beam eot crane


    12m 5 ton bridge crane

    Europe style 3 ton 5 ton single girder beam overhead bridge eot crane for workshop



    Explosion-proof single beam (electric suspension) (LB, LXB) crane use

    Explosion-proof single-beam cranes are widely used in factories with inflammable, explosive and corrosive media environments, warehouses, stockyards and other occasions for lifting goods. Explosion-proof grade dIIBT4

    This product has two operation modes: ground and control room. There are two types of control room, open type and closed type, which can be divided into two types for installation on the left or right according to the actual situation. There are two types of entry directions, side and end, to meet the needs of users in various situations.


    Capacity t 3 5 10 16 20
    Operational method   Pendent line with press button /cabin/remote control
    Speed Hoisting m/min 8. 8/0.8 7. 7/0.7 3.5, 3.5/0.35 6. 6/0.6
    Travelling of crab 20
    Travelling of crane Surface 20(30) 20
    Cabin 20(30) 20
    Electric hoist Type CD1-3 MD1-3 CD1-5 MD1-5 CD1-10 MD1-10 CD1-16 MD1-16
    Lifting height m 6,9,12 6,9,12,18 9,12 9,12 9,12
    Working class   A3~A5
    Power supply   3-phrase 50HZ 380V


    Metallurgical single beam crane (LDY) use

    The LDY crane is suitable for working in working class A6, working environment temperature≤60℃, relative humidity≤85﹪, altitude below 2000m, and non-corrosive medium environment conditions. The main function is to work in an intermittent and periodic way, through lifting hooks or other picking devices to complete the displacement of the lifting and transporting heavy objects in the metallurgical production process in a timely and rapid manner, which is a modern industry

    Important tools and equipment for improving labor productivity in metallurgical and foundry sites in enterprises

    Ltem Data
    Capacity 1-12.5t
    Span 7.5-25.5m
    Lifting height 6-12m
    lifting speed 5/0.8m/min
    cross travelling speed 2-20m/min
    long travelling speed 2-45m/mim
    Working class ISOA3-A5/FEM2M
    Power source as your demands
    Other According to your specific usage, specific model and design will offer


    Workshop 5 Ton 12m Explosion Proof Single Beam Eot Crane 0Workshop 5 Ton 12m Explosion Proof Single Beam Eot Crane 1
