|Place of Origin:||HENAN,CHINA|
|Certification:||BV CE ISO|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden box|
|Delivery Time:||30work days|
|Payment Terms:||L/C, T/T|
|After-sales Service Provided:||Field Installation, Commissioning And Training||Color:||According To Your Demand|
|Control Method:||Ground Control Or Cabin Control||Lifting/traveling Speed:||Single/double Speed|
|Working Voltage:||3 Phase 380V 50Hz, Or On Request||Main Electrical Parts:||Schneider Brand, Or On Request|
Manual 2 ton bridge crane,
BV manual overhead crane,
2T manual overhead crane

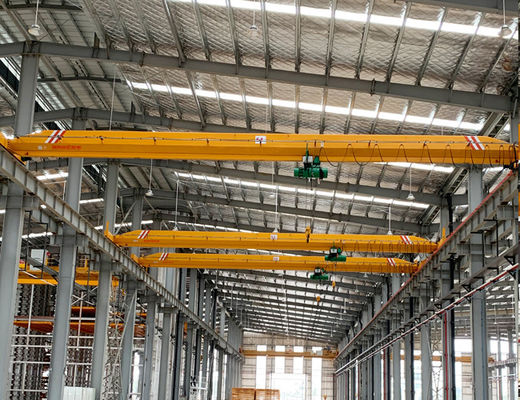

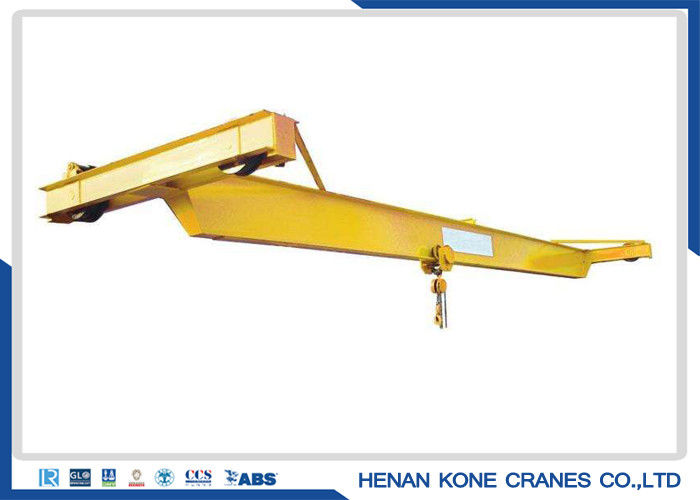

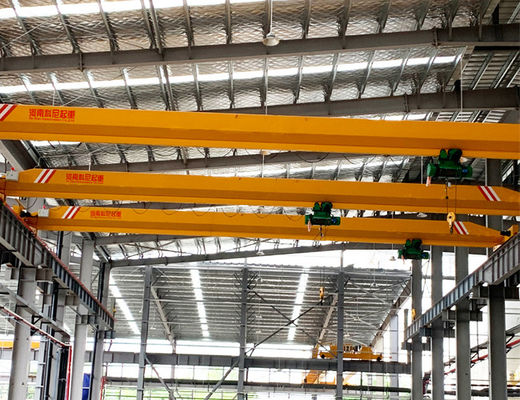

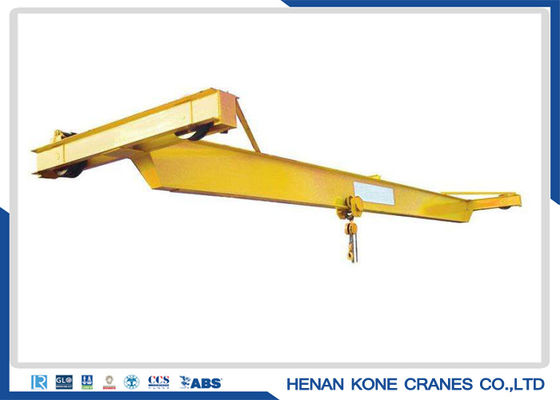

2 Ton Mini Hoist Manual Single Girder Overhead Crane
The limiting size is the lowest between the top of crab and the track of trolley, that is to say, it reduces 20%-30% compared with traditional products, which can reduce the capacity of workshop 20% efficiency. It has hard-tooth reducer, imported wire-rope, and trinity drive. It is equipped with such protecting devices as alarm device to overloading, obliquely hanging second protecting equipment preventing hook clashing the top, protecting the current lacking of any phrase etc. The operating board (handle) adopts 12v safe voltage to fulfill multifunction of protection to overheadhoist. The electric controlling can be used more than 2 million times when the voltage is 380v+5~-10%.
|LX Type Electric Single-girder Underslung Crane 5t|
|Max wheel load||t||2.92||2.94||2.96||2.99||3.01||3.10||3.12||3.15|
|Girder edge to hook||h||1320||1320||1320||1320||1320||1320||1320||1320|
|Hook left limitation||S1||302||302||302||302||302||302||302||302|
|Hook right limitation||S2||170||170||170||170||170||170||170||170|
|Note: Control mode for ground operation|
1. What is an overhead crane inspection?
Periodic (Annual) Overhead Crane & Hoist Inspection. The Periodic (Annual) Overhead Crane and Hoist Inspection is a detailed visual and operational inspection. Individual components are examined to determine their condition. The Periodic Inspection is performed Annually, Semi-Annually and perhaps even Quarterly based on severity of service.
2. Why do you need an overhead crane?
Moving bulky loads on floors or through aisles requires a lot of time and can result in injuries. However, overhead cranes play a key role in this because they easily allow warehouse owners in lifting, lowering and moving loads horizontally.
3. What is the role of the grab bridge bucket crane?
Usually, the grab bucket crane is located at the top of the garbage storing pit and is mainly used for the operation of feeding, conveying, mixing, fetching, and weighing of garbage. The garbage grab crane manufactured by the crane factory can implement lifting and convey strictly to ensure normal work of garbage cremation power point.
