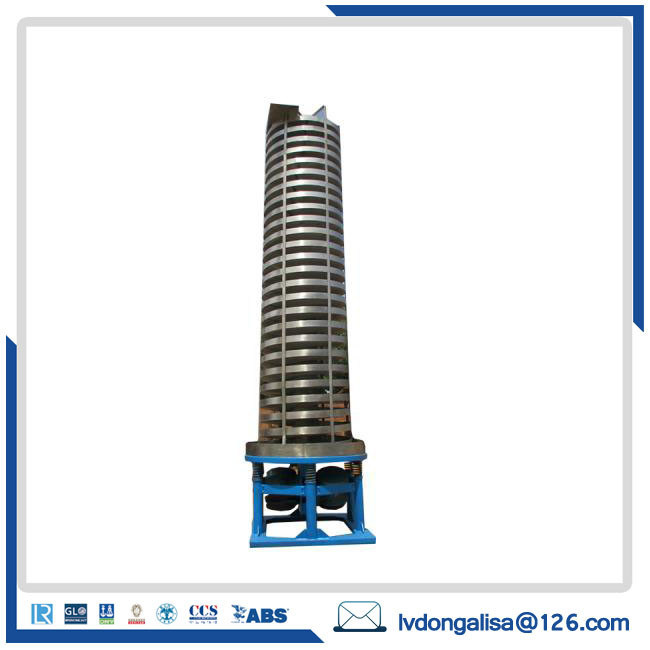

Vertical Spiral Elevator Conveyor , Spiral Cooling Conveyor For Rock Salt

Vertical Spiral Elevator Conveyor , Spiral Cooling Conveyor For Rock Salt

  • Vertical Spiral Elevator Conveyor , Spiral Cooling Conveyor For Rock Salt
Vertical Spiral Elevator Conveyor , Spiral Cooling Conveyor For Rock Salt
Product Details:
Place of Origin: XINXIANG,CHINA
Brand Name: KENI
Certification: CE
Model Number: ZC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 15work days
Payment Terms: L/C, T/T
Supply Ability: 1000PCS
Contact Now
Detailed Product Description
Condition:: New Material:: Stainless Steel
Material Feature:: Heat Resistant Structure:: Conveyor System
Place Of Origin:: Henan, China Brand Name:: KENI
Warranty:: 1 Year, 12 Months Frame Material:: SUS304/Carbon Steel
Highlight:

960rpm Spiral Elevator Conveyor

,

8m Spiral Elevator Conveyor

,

960rpm spiral cooling conveyor

Vertical Vibrating Screw Conveyors / Cooling Spiral Elevator for Rock Salt



1. Product overview:



The ZC series vertical elevator is a new type of vertical conveying equipment. This machine can convey all granular, block, and powder solid materials (with low viscosity). It is widely used in metallurgy, coal, building materials, grain, machinery, medicine, food and other industries. It is used for vertical lifting operations of powdery and granular materials. The elevator can also dry and cool materials. ZC vertical elevator has two structures: trough type and closed type. According to different process requirements, it can design a screening elevator for material particle classification and an elevator for flammable and explosive materials.



2. Main features:

The product has a small footprint and is convenient for process layout.

Materials can be conveyed upwards or downwards.

Low noise, simple structure, convenient installation and maintenance.

The structure is simple and reasonable, energy consumption is small, electric energy is saved, and trough wear is small.



Type Lifting Capability(t/h)

Diameter of spiral chute

(mm)

Lifting height

(m)

Speed

(rpm)

Double amplitude

(mm)

Power

(kw)

Weight

(kg)

ZC300 -1.0 300 ≤2.0 960 6-7 2*0.4 800
ZC500 -2.0 500 ≤3.0 960 6-8 2*0.75 1150
ZC550 -3.0 550 ≤3.5 960 6-8 2*1.5 1300
ZC600 -3.0 600 ≤4.0 960 6-7 2*1.5 1500
ZC800 -4.0 800 ≤4.5 960 6-8 2*2.2 1750
ZC850 -4.0 850 ≤5.0 960 6-9 2*2.2 2300
ZC900 -3.5 900 ≤6.0 960 6-9 2*3.0 2600
ZC950 -4 950 ≤8.0 960 6-9 2*3.7 3200



Vertical Spiral Elevator Conveyor , Spiral Cooling Conveyor For Rock Salt 0

Vertical Spiral Elevator Conveyor , Spiral Cooling Conveyor For Rock Salt 1
