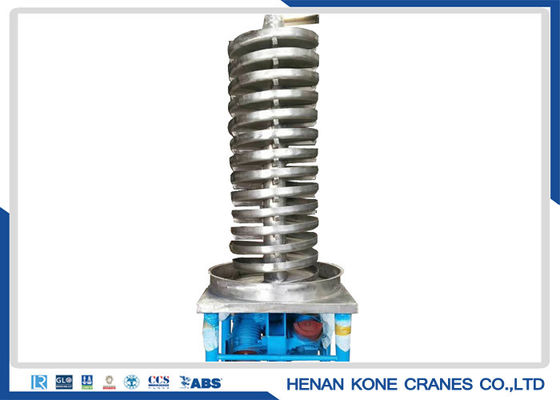

ISO9001 Spiral Elevator Conveyor , Vibratory Spiral Conveyor

Screw conveyor/auger elevator/spiral feeder

1. Product overview:

The ZC series vertical elevator is a new type of vertical conveying equipment. This machine can convey all granular, block, and powder solid materials (with low viscosity). It is widely used in metallurgy, coal, building materials, grain, machinery, medicine, food and other industries. It is used for vertical lifting operations of powdery and granular materials. The elevator can also dry and cool materials. ZC vertical elevator has two structures: trough type and closed type. According to different process requirements, it can design a screening elevator for material particle classification and an elevator for flammable and explosive materials.

2. Main features:

The product has a small footprint and is convenient for process layout.

Materials can be conveyed upwards or downwards.

Low noise, simple structure, convenient installation and maintenance.

The structure is simple and reasonable, energy consumption is small, electric energy is saved, and trough wear is small.

Three, working principle:

The vibration motor of the driving device of the ZC series vertical hoist is installed at the lower part of the conveying tower. Two vibration motors are installed symmetrically and crosswise. The conveying tower is composed of a pipe body and a spiral conveying groove welded around the pipe body. The conveying tower is seated on a vibration damping device. The damping device is composed of a base and a vibration isolation spring. When the vertical hoist is working, according to the principle of self-synchronization of dual vibration motors, the vibration motor generates the exciting force, which forces the entire conveyor tower to perform horizontal circular motion and upward vertical motion spatial compound vibration, and the material in the spiral groove is affected by the conveying groove. The function is to make a uniform throwing circular motion and move upward along the conveying trough to complete the upward (or downward) conveying operation of the material. Therefore, this equipment is also called a vibrating vertical conveyor.

Four, model description:

Z C--□

┬ ┬ ┬

│ │ │

│ │ │

│ | │

│ │ └────────Conveying height (m)

│ └───────────- Vertical conveying

└───────────── Vibration motor

1. The basic type (ZC---port), which is an open conveying trough structure, is used for upward (or downward) conveying of a stream of materials without special requirements.

2. The closed type (ZC--port F) is a closed conveying trough structure, which is used for upward (or downward) conveying operations where materials are required to be dustproof.
